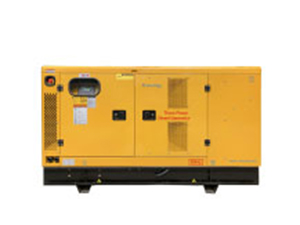

Generator set	Type	Open	Open with ATS	Silent	Silent with ATS
	Genset Model	DK30500	DK30500A	DK30500S	DK30500SA
	Prime Power Rating	62.5KVA/50KW
	Standby Power Rating	68.8KVA/55KW
	Size(mm)	1800*735*1135		2250*980*1250
	Weight(KG)	986		1585
	Internal protection	IP22
	Rate current(A)	90
	Specific Fuel Consumption(g/kW·h)@100% Load	≤192
	Noise at 7 meters away(dB)	N/A		75db

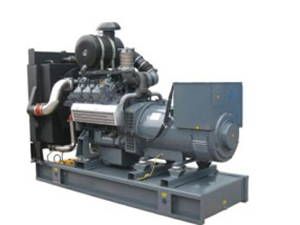

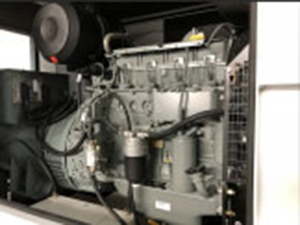

Engine	Model	Deutz BF4M2012
	NO. of Cylinder	4
	Cylinder Type	L
	RPM	1500
	Bore (mm)	101
	Stroke(mm)	126
	Speed Governor	electronic
	Start system(VDC)	24
	Lub Oil Specification	15W40
	Displacement(Ltrs)	4.04
	Air inspiration	turbo
	Phase	3
Alternator	Brand	KUSING
	Model	S224G50C5
	3 Phase Voltage(1 Phase) Volts	380-415(220-240)
	RPM/Frequency	1500rpm/50hz
	Power Factor(%)	0.8(lagging)
	Voltage Tolerance(+/- %)	1
	Insulation Class	H
Control Panel	Brand	KUSING
	Model	AD6132
Fuel Tank	Capacity(Ltrs)	SUPPORT TO RUN 8-10 HOURS
