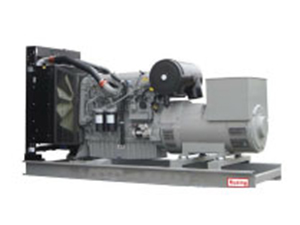

Generator set	Type	Open	Open with ATS	Silent	Silent with ATS
	Genset Model	PK38000	PK38000A	PK38000S	PK38000SA
	Prime Power Rating	1000KVA/800KW
	Standby Power Rating	1100KVA/880KW

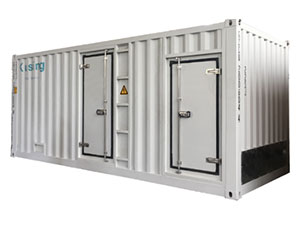

	Size(mm)	5050*2035*2450		40'HQ container
	Weight(KG)	5867		N/A
	Internal protection	IP22
	Rate current(A)	1443
	Specific Fuel Consumption(L/H)@100% Load	220
	Noise at 7 meters away(dB)	N/A		75db

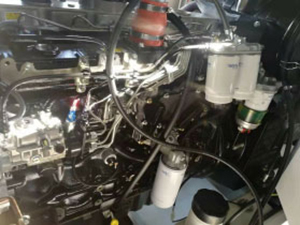

Engine	Model	PERKINS 4008-TAG2A
	NO. of Cylinder	8
	Cylinder Type	L
	RPM	1500
	Bore (mm)	160
	Stroke(mm)	190
	Speed Governor	electronic
	Start system(VDC)	24
	Lub Oil Specification	15W40
	Displacement(Ltrs)	30.6
	Lub Oil Sump Capacity(Ltrs)	165.6
	Coolant Capacity(Ltrs)	162
	Air inspiration	turbo
	Phase	3
Alternator	Brand	KUSING
	Model	S404G800D4
	3 Phase Voltage(1 Phase) Volts	380-415(220-240)
	RPM/Frequency	1500rpm/50hz
	Power Factor(%)	0.8(lagging)
	Voltage Tolerance(+/- %)	1
	Insulation Class	H
Control Panel	Brand	KUSING
	Model	AD6132
Fuel Tank	Capacity(Ltrs)	SUPPORT TO RUN 8 TO 10 HOURS
