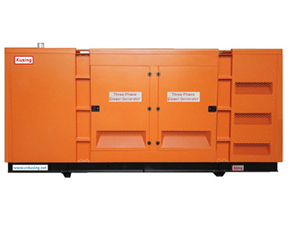

Generator set	Type	Open	Open with ATS	Silent	Silent with ATS
	Genset Model	PK32800	PK32800A	PK32800S	PK32800SA
	Prime Power Rating	350KVA/280KW
	Standby Power Rating	385KVA/308KW
	Size(mm)	3000*1100*1690		4500*1400*2200
	Weight(KG)	2832		3984
	Internal protection	IP22
	Rate current(A)	505
	Specific Fuel Consumption(L/H)@100% Load	71
	Noise at 7 meters away(dB)	N/A		75db

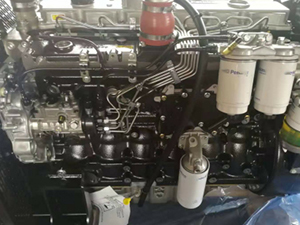

Engine	Model	Perkins 1706A-E93TAG2
	NO. of Cylinder	6
	Cylinder Type	L
	RPM	1500
	Bore (mm)	130
	Stroke(mm)	157
	Speed Governor	electronic
	Start system(VDC)	24
	Lub Oil Specification	15W40
	Displacement(Ltrs)	12.5
	Lub Oil Sump Capacity(Ltrs)	40
	Coolant Capacity(Ltrs)	51
	Air inspiration	turbo
	Phase	3
Alternator	Brand	KUSING
	Model	S314G280D6
	3 Phase Voltage(1 Phase) Volts	380-415(220-240)
	RPM/Frequency	1500rpm/50hz
	Power Factor(%)	0.8(lagging)
	Voltage Tolerance(+/- %)	1
	Insulation Class	H
Control Panel	Brand	KUSING
	Model	AD6132
Fuel Tank	Capacity(Ltrs)	support to run 8-10 hours
