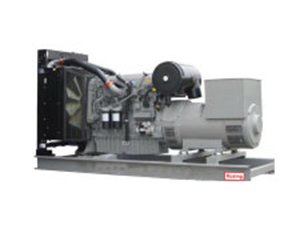

Generator set	Type	Open	Open with ATS	Silent	Silent with ATS
	Genset Model	PK36000	PK36000A	PK36000S	PK36000SA
	Prime Power Rating	750KVA/600KW
	Standby Power Rating	825KVA/660KW

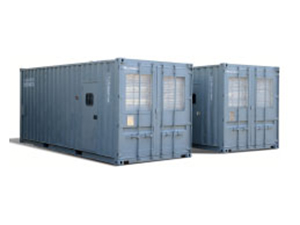

	Size(mm)	4020*1710*2250		20 FT CONTAINER
	Weight(KG)	5225		N/A
	Internal protection	IP22
	Rate current（A)	1083
	Specific Fuel Consumption(L/H)@100% Load	157
	Noise at 7 meters away(dB)	N/A		75db

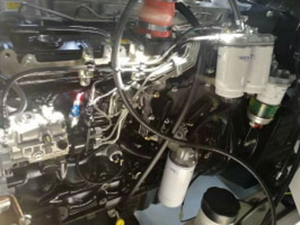

Engine	Model	Perkins 4006-23TAG2
	NO. of Cylinder	6
	Cylinder Type	L
	RPM	1500
	Bore (mm)	160
	Stroke(mm)	190
	Speed Governor	electronic
	Start system(VDC)	24
	Lub Oil Specification	15W40
	Displacement(Ltrs)	23
	Lub Oil Sump Capacity(Ltrs)	113
	Coolant Capacity(Ltrs)	120
	Air inspiration	turbo
	Phase	3
Alternator	Brand	KUSING
	Model	S354G600E10
	3 Phase Voltage(1 Phase) Volts	380-415(220-240)
	RPM/Frequency	380-415(220-240)
	Power Factor(%)	0.8(lagging)
	Voltage Tolerance(+/- %)	1
	Insulation Class	H
Control Panel	Brand	KUSING
	Model	AD6132
Fuel Tank	Capacity(Ltrs)	SUPPORT TO RUN 8 TO 10 HOURS
