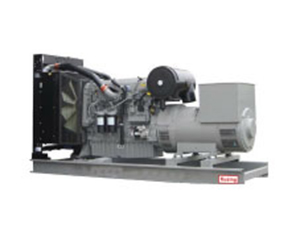

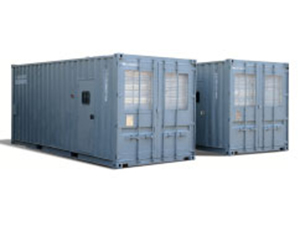

Generator set	Type	Open	Open with ATS	Silent	Silent with ATS
	Genset Model	PK36400	PK36400A	PK36400S	PK36400SA
	Prime Power Rating	800KVA/640KW
	Standby Power Rating	880KVA/704KW
	Size(mm)	4120*1780*2250		20 FT CONTAINER
	Weight(KG)	5930		N/A
	Internal protection	IP22
	Rate current(A)	1155
	Specific Fuel Consumption(L/H)@100% Load	172
	Noise at 7 meters away(dB)	N/A		75db

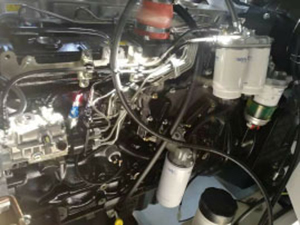

Engine	Model	Perkins 4006-23TAG3A
	NO. of Cylinder	6
	Cylinder Type	vertical in line
	RPM	1500
	Bore (mm)	160
	Stroke(mm)	190
	Speed Governor	electronic
	Start system(VDC)	24
	Lub Oil Specification	15W40
	Displacement(Ltrs)	23
	Lub Oil Sump Capacity(Ltrs)	113
	Coolant Capacity(Ltrs)	120
	Air inspiration	turbo
	Phase	3
Alternator	Brand	KUSING
	Model	S404G640D2
	3 Phase Voltage(1 Phase) Volts	380-415(220-240)
	RPM/Frequency	1500rpm/50hz
	Power Factor(%)	0.8(lagging)
	Voltage Tolerance(+/- %)	1
	Insulation Class	H
Control Panel	Brand	KUSING
	Model	AD6132
Fuel Tank	Capacity(Ltrs)	SUPPORT TO RUN 8-10 HOURS
