| TECHANICAL DATA | |||||
| Generator set | Type | Open | Open with ATS | Silent | Silent with ATS |
| Genset Model | K33500 | K33500A | K33500S | K33500SA | |
| Prime Power Rating | 437.5KVA/350KW | ||||
| Standby Power Rating | 481.3KVA/385KW | ||||
| Size(mm) | 3000*1150*1600 | 4500*1500*2200 | |||
| Weight(KG) | 2890 | 3590 | |||
| Internal protection | IP22 | ||||
| Rate current(A) | 631 | ||||
| Specific Fuel Consumption(G/KW.H)@100% Load | ≤230 | ||||
| Noise at 7 meters away(dB) | N/A | 75db | |||
| Engine | Model | YTO YM6S9LF-D | |||
| NO. of Cylinder | 6 | ||||
| Cylinder Type | L | ||||
| RPM | 1500 | ||||
| Bore (mm) | 126 | ||||
| Stroke(mm) | 155 | ||||
| Speed Governor | electronic | ||||
| Start system(VDC) | 24 | ||||
| Lub Oil Specification | 15W40 | ||||
| Displacement(Ltrs) | 11.6 | ||||
| Air inspiration | turbo | ||||
| Phase | 3 | ||||
| Alternator | Brand | KUSING | |||
| Model | S314G360E9 | ||||
| 3 Phase Voltage(1 Phase) Volts | 380-415(220-240) | ||||
| RPM/Frequency | 1500rpm/50hz | ||||
| Power Factor(%) | 0.8(lagging) | ||||
| Voltage Tolerance(+/- %) | 1 | ||||
| Insulation Class | H | ||||
| Control Panel | Brand | KUSING | |||
| Model | AD6132 | ||||
| Fuel Tank | Capacity(Ltrs) | SUPPORT TO RUN 8 TO 10 HOURS | |||
Stationary Diesel Generator List
- Generator Powered by Cummins Diesel Engine
- Generator Powered by Deutz Diesel Engine
- Generator Powered by Perkins Diesel Engine
- Generator Powered by Lovol Diesel Engine
- Generator Powered by Volvo Diesel Engine
- Generator Powered by Isuzu Diesel Engine
- Generator Powered by Kusing Diesel Engine
- Home
- Products
- Stationary Diesel Generator
- 350kW Kusing Engine Powered Diesel Generator

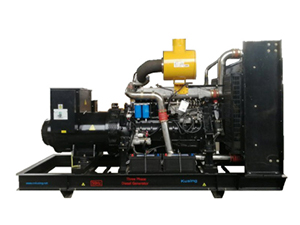

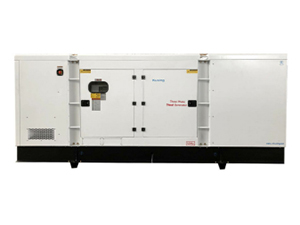

350kW Kusing Engine Powered Diesel Generator
Kusing is a leading industrial diesel generator manufacturer, K33500 Kusing engine powered 350KW 50HZ diesel generator supplier, there are a wide range of diesel gensets with power ranging from 10KVA to 2000KVA, such as Cummins engine powered generator, Perkins engine powered generator, Lovol engine powered generator, etc. We have years of experience in designing and manufacturing industrial generators, each genset is tested to ensure quality, Kusing company provides quality diesel gensets as well as diesel power solutions for customers.
