Generator set	Type	Open	Open with ATS	Silent	Silent with ATS
	Genset Model	PK318000	PK318000A	PK318000S	PK318000SA
	Prime Power Rating	2250KVA/1800KW
	Standby Power Rating	2475KVA/1980KW
	Size(mm)	6280*2220*3050		40'HQ container
	Weight(KG)	11904		N/A
	Internal protection	IP22
	Rate current(A)	3248
	Specific Fuel Consumption(L/H)@100% Load	473
	Noise at 7 meters away(dB)	N/A		75db

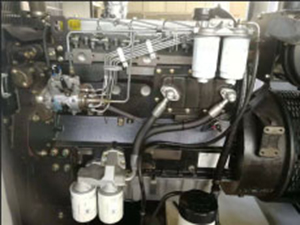

Engine	Model	PERKINS 4016-61TRG3
	NO. of Cylinder	16
	Cylinder Type	V
	RPM	1500
	Bore (mm)	160
	Stroke(mm)	190
	Speed Governor	electronic
	Start system(VDC)	24
	Lub Oil Specification	15W40
	Displacement(Ltrs)	61.1
	Lub Oil Sump Capacity(Ltrs)	213
	Coolant Capacity(Ltrs)	270
	Air inspiration	turbo
	Phase	3
Alternator	Brand	KUSING
	Model	S454G1872E7
	3 Phase Voltage(1 Phase) Volts	380-415(220-240)
	RPM/Frequency	1500rpm/50hz
	Power Factor(%)	0.8(lagging)
	Voltage Tolerance(+/- %)	1
	Insulation Class	H
Control Panel	Brand	KUSING
	Model	AD6132
Fuel Tank	Capacity(Ltrs)	SUPPORT TO RUN 8 TO 10 HOURS
