Generator set	Type	Open	Open with ATS	Silent	Silent with ATS
	Genset Model	CK32800	CK32800A	CK32800S	CK32800SA
	Prime Power Rating	350KVA/280KW
	Standby Power Rating	385KVA/308KW
	Size(mm)	3000*1100*1890		4500*1400*2200
	Weight(KG)	3200		4000
	Internal protection	IP22
	Rate current(A)	504
	Specific Fuel Consumption(L/H)@100% Load	47.8
	Noise at 7 meters away(dB)	N/A		75db
Engine	Model	Cummins NTA855-G2A / QSM11-G2
	NO. of Cylinder	6
	Cylinder Type	L
	RPM	1500
	Bore (mm)	140
	Stroke(mm)	152
	Speed Governor	electronic
	Start system(VDC)	24
	Lub Oil Specification	15W40
	Displacement(Ltrs)	14
	Lub Oil Sump Capacity(Ltrs)	38.6
	Coolant Capacity(Ltrs)	63.9
	Air inspiration	turbo
	Phase	3
Alternator	Brand	KUSING
	Model	S314G280D6
	3 Phase Voltage(1 Phase) Volts	380-415(220-240)
	RPM/Frequency	1500rpm/50hz
	Power Factor(%)	0.8(lagging)
	Voltage Tolerance(+/- %)	1
	Insulation Class	H

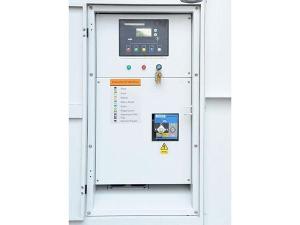

Control Panel	Brand	KUSING
	Model	AD6132
Fuel Tank	Capacity(Ltrs)	support to run 8-10 hours
