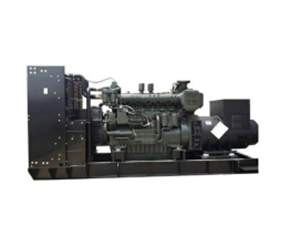

Generator set	Type	Open	Open with ATS	Silent	Silent with ATS
	Genset Model	DK36400	DK36400A	DK36400S	DK36400SA
	Prime Power Rating	800KVA/640KW
	Standby Power Rating	880KVA/704KW

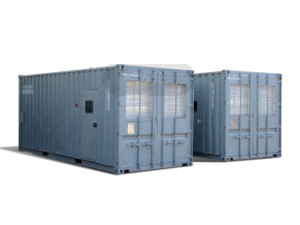

	Size(mm)	4120*1780*2250		20 FT CONTAINER
	Weight(KG)	5830		6900
	Internal protection	IP22
	Rate current(A)	1155
	Specific Fuel Consumption(g/kW·h)@100% Load	≤197
	Noise at 7 meters away(dB)	N/A		75db

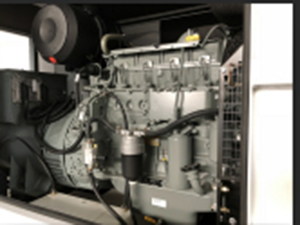

Engine	Model	Deutz HC12V132ZL-LAG1A
	NO. of Cylinder	12
	Cylinder Type	V
	RPM	1500
	Bore (mm)	159
	Stroke(mm)	159
	Speed Governor	electronic
	Start system(VDC)	24
	Lub Oil Specification	15W40
	Displacement(Ltrs)	8.9
	Air inspiration	turbo
	Phase	3
Alternator	Brand	KUSING
	Model	S404G640D2
	3 Phase Voltage(1 Phase) Volts	380-415(220-240)
	RPM/Frequency	1500rpm/50hz
	Power Factor(%)	0.8(lagging)
	Voltage Tolerance(+/- %)	1
	Insulation Class	H
Control Panel	Brand	KUSING
	Model	AD6132
Fuel Tank	Capacity(Ltrs)	SUPPORT TO RUN 8-10 HOURS
