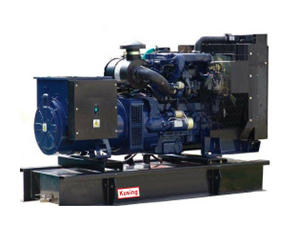

Generator set	Type	Open	Open with ATS	Silent	Silent with ATS
	Genset Model	PK32500	PK32500A	PK32500S	PK32500SA
	Prime Power Rating	312.5KVA/250KW
	Standby Power Rating	343.8KVA/275KW
	Size(mm)	2600*950*1630		4200*1400*1950
	Weight(KG)	2249		3381
	Internal protection	IP22
	Rate current(A)	450
	Specific Fuel Consumption(L/H)@100% Load	58
	Noise at 7 meters away(dB)	N/A		75db
Engine	Model	Perkins 1706A-E93TAG1
	NO. of Cylinder	6
	Cylinder Type	L
	RPM	1500
	Bore (mm)	115
	Stroke(mm)	149
	Speed Governor	electronic
	Start system(VDC)	24
	Lub Oil Specification	15W40
	Displacement(Ltrs)	8.7
	Lub Oil Sump Capacity(Ltrs)	41
	Coolant Capacity(Ltrs)	26-30
	Air inspiration	turbo
	Phase	3
Alternator	Brand	KUSING
	Model	S314G250D4
	3 Phase Voltage(1 Phase) Volts	380-415(220-240)
	RPM/Frequency	1500rpm/50hz
	Power Factor(%)	0.8(lagging)
	Voltage Tolerance(+/- %)	1
	Insulation Class	H

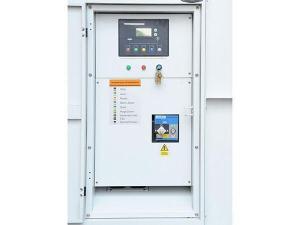

Control Panel	Brand	KUSING
	Model	AD6132
Fuel Tank	Capacity(Ltrs)	support to run 8-10 hours
