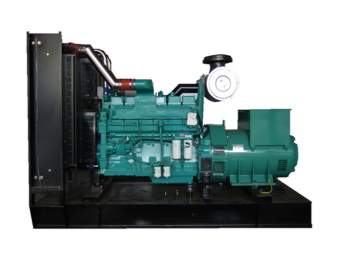

Generator set	Type	Open	Open with ATS	Silent	Silent with ATS
	Genset Model	CK39000	CK39000A	CK39000S	CK39000SA
	Prime Power Rating	1125KVA/900KW
	Standby Power Rating	1237.5KVA/990KW

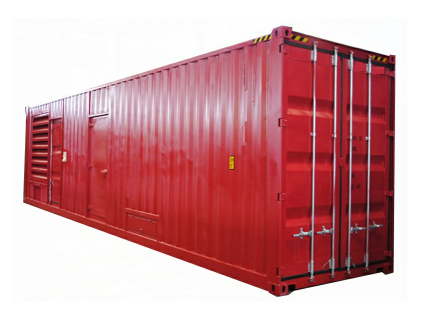

	Size(mm)	5100*2030*2450		40'HQ container
	Weight(KG)	7850		9000
	Internal protection	IP22
	Rate current(A)	1624
	Specific Fuel Consumption(L/H)@100% Load	150
	Noise at 7 meters away(dB)	N/A		75db

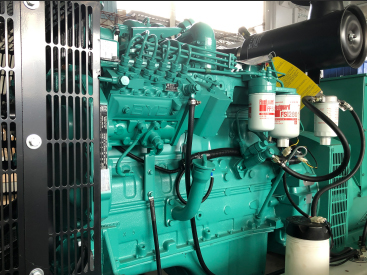

Engine	Model	Cummins KTA38-G9
	NO. of Cylinder	12
	Cylinder Type	V
	RPM	1500
	Bore (mm)	159
	Stroke(mm)	159
	Speed Governor	electronic
	Start system(VDC)	24
	Lub Oil Specification	15W40
	Displacement(Ltrs)	38
	Lub Oil Sump Capacity(Ltrs)	135
	Coolant Capacity(Ltrs)	290
	Air inspiration	turbo
	Phase	3
Alternator	Brand	KUSING
	Model	S404G900D5
	3 Phase Voltage(1 Phase) Volts	380-415(220-240)
	RPM/Frequency	1500rpm/50hz
	Power Factor(%)	0.8(lagging)
	Voltage Tolerance(+/- %)	1
	Insulation Class	H
Control Panel	Brand	KUSING
	Model	AD6132
Fuel Tank	Capacity(Ltrs)	SUPPORT TO RUN 8 TO 10 HOURS
