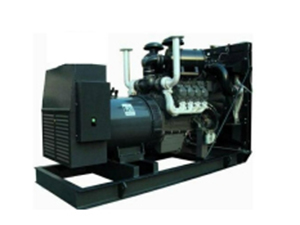

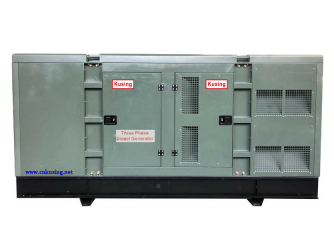

Generator set	Type	Open	Open with ATS	Silent	Silent with ATS
	Genset Model	DK34000	DK34000A	DK34000S	DK34000SA
	Prime Power Rating	500KVA/400KW
	Standby Power Rating	550KVA/440KW
	Size(mm)	3300*1150*1990		4800*1700*2250
	Weight(KG)	3680		4480
	Internal protection	IP22
	Rate current(A)	722
	Specific Fuel Consumption(g/kW·h)@100% Load	≤196
	Noise at 7 meters away(dB)	N/A		75db
Engine	Model	Deutz BF8M1015CP-LA G1A
	NO. of Cylinder	8
	Cylinder Type	L
	RPM	1500
	Bore (mm)	132
	Stroke(mm)	145
	Speed Governor	electronic
	Start system(VDC)	24
	Lub Oil Specification	15W40
	Displacement(Ltrs)	8.3
	Air inspiration	turbo
	Phase	3
Alternator	Brand	KUSING
	Model	S354G400D2
	3 Phase Voltage(1 Phase) Volts	380-415(220-240)
	RPM/Frequency	1500rpm/50hz
	Power Factor(%)	0.8(lagging)
	Voltage Tolerance(+/- %)	1
	Insulation Class	H

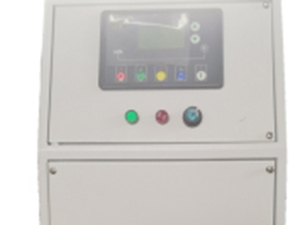

Control Panel	Brand	KUSING
	Model	AD6132
Fuel Tank	Capacity(Ltrs)	SUPPORT 8 TO 10 HOURS RUNNING TIME
