Generator set	Type	Open	Open with ATS	Silent	Silent with ATS
	Genset Model	DK30300	DK30300A	DK30300S	DK30300SA
	Prime Power Rating	37.5KVA/30KW
	Standby Power Rating	41.3KVA/33KW
	Size(mm)	1600*750*1135		2250*950*1250
	Weight(KG)	800		1050
	Internal protection	IP22
	Rate current(A)	54
	Specific Fuel Consumption(g/kW·h)@100% Load	226
	Noise at 7 meters away(dB)	N/A		75db

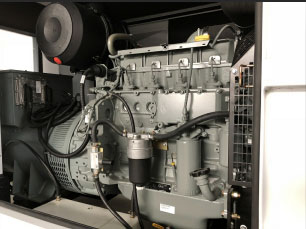

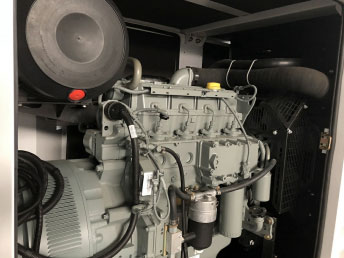

Engine	Model	Deutz BFM3G2
	NO. of Cylinder	4
	Cylinder Type	L
	RPM	1500
	Bore (mm)	98
	Stroke(mm)	105
	Speed Governor	electronic
	Start system(VDC)	12
	Lub Oil Specification	15W40
	Displacement(Ltrs)	3.168
	Air inspiration	Natural
	Phase	3
Alternator	Brand	KUSING
	Model	S184G30E12
	3 Phase Voltage(1 Phase) Volts	380-415(220-240)
	RPM/Frequency	1500rpm/50hz
	Power Factor(%)	0.8(lagging)
	Voltage Tolerance(+/- %)	1
	Insulation Class	H
Control Panel	Brand	KUSING
	Model	AD6122
Fuel Tank	Capacity(Ltrs)	SUPPORT TO RUN 8-10 HOURS
