Generator set	Type	Open	Open with ATS	Silent	Silent with ATS
	Genset Model	CK312000	CK312000A	CK312000S	CK312000SA
	Prime Power Rating	1500KVA/1200KW
	Standby Power Rating	1650KVA/1320KW

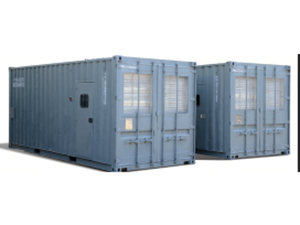

	Size(mm)	5800*2030*2650		40'HQ container
	Weight(KG)	11050		12500
	Internal protection	IP22
	Rate current(A)	2165
	Specific Fuel Consumption(L/H)@100% Load	186
	Noise at 7 meters away(dB)	N/A		75db
Engine	Model	CUMMINS KTA50-GS8
	NO. of Cylinder	16
	Cylinder Type	V
	RPM	1500
	Bore (mm)	159
	Stroke(mm)	159
	Speed Governor	electronic
	Start system(VDC)	24
	Lub Oil Specification	15W40
	Displacement(Ltrs)	50
	Lub Oil Sump Capacity(Ltrs)	177
	Coolant Capacity(Ltrs)	351
	Air inspiration	turbo
	Phase	3
Alternator	Brand	KUSING
	Model	S404G1200E8
	3 Phase Voltage(1 Phase) Volts	380-415(220-240)
	RPM/Frequency	1500rpm/50hz
	Power Factor(%)	0.8(lagging)
	Voltage Tolerance(+/- %)	1
	Insulation Class	H
Control Panel	Brand	KUSING
	Model	AD6132
Fuel Tank	Capacity(Ltrs)	SUPPORT TO RUN 8 TO 10 HOURS
