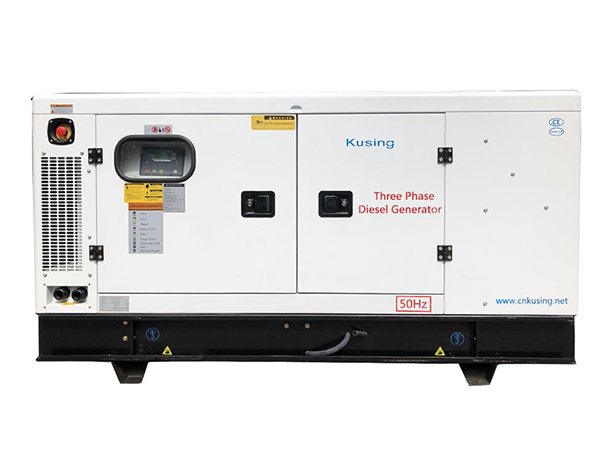

Generator set	Type	Open	Open with ATS	Silent	Silent with ATS
	Genset Model	CK30240	CK30240A	CK30240S	CK30240SA
	Prime Power Rating	30KVA/24KW
	Standby Power Rating	33KVA/26.4KW
	Size(mm)	1700*850*1080		2300*1100*1250
	Weight(KG)	865		1340
	Internal protection	IP22
	Rate current(A)	43
	Specific Fuel Consumption(L/H)@100% Load	4.2
	Noise at 7 meters away(dB)	N/A		75db
Engine	Model	cummins 4B3.9-G2 / 4B3.9-G1
	NO. of Cylinder	4
	Cylinder Type	L
	RPM	1500
	Bore (mm)	102
	Stroke(mm)	120
	Speed Governor	Electronic/Mechanism
	Start system(VDC)	24
	Lub Oil Specification	15W40
	Displacement(Ltrs)	3.9
	Lub Oil Sump Capacity(Ltrs)	7.5
	Coolant Capacity(Ltrs)	7.9
	Air inspiration	Natural
	Phase	3

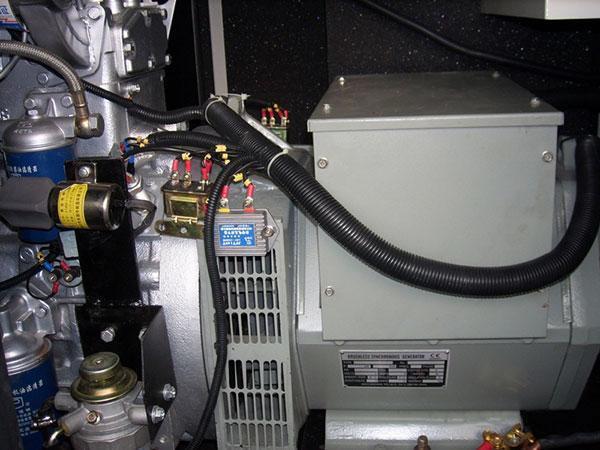

Alternator	Brand	KUSING
	Model	S184G25D10
	3 Phase Voltage(1 Phase) Volts	380-415(220-240)
	RPM/Frequency	1500rpm/50hz
	Power Factor(%)	0.8(lagging)
	Voltage Tolerance(+/- %)	1
	Insulation Class	H

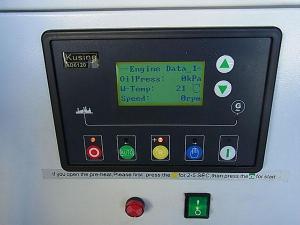

Control Panel	Brand	KUSING
	Model	AD6122
Fuel Tank	Capacity(Ltrs)	Ssupport 8 to 10 hours running time
