Generator set	Type	Open	Open with ATS	Silent	Silent with ATS
	Genset Model	K30160	K30160A	K30160S	K30160SA
	Prime Power Rating	20KVA/16KW
	Standby Power Rating	22KVA/17.6KW
	Size(mm)	1600*700*950		2250*950*1100
	Weight(KG)	578		746
	Internal protection	IP22
	Rate current(A)	29
	Specific Fuel Consumption(G/KW.H)@100% Load	≤247.5
	Noise at 7 meters away(dB)	N/A		75db

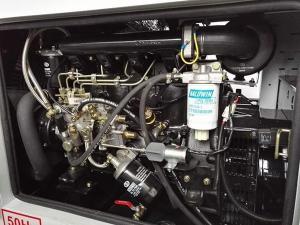

Engine	Model	CHINESE YANGDONG YSD490 / YND485
	NO. of Cylinder	4
	Cylinder Type	L
	RPM	1500
	Bore (mm)	90
	Stroke(mm)	100
	Speed Governor	mechanic
	Start system(VDC)	12
	Lub Oil Specification	15W40
	Displacement(Ltrs)	2.54
	Air inspiration	Natural
	Phase	3
Alternator	Brand	KUSING
	Model	S184G16C6
	3 Phase Voltage(1 Phase) Volts	380-415(220-240)
	RPM/Frequency	1500rpm/50hz
	Power Factor(%)	0.8(lagging)
	Voltage Tolerance(+/- %)	1
	Insulation Class	H
Control Panel	Brand	KUSING
	Model	AD6122
Fuel Tank	Capacity(Ltrs)	SUPPORT TO RUN 8-10 HOURS
