TECHANICAL DATA

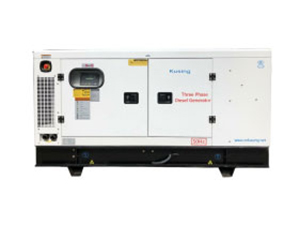

Generator set	Type	Open	Open with ATS	Silent	Silent with ATS
	Genset Model	PGK30360	PGK30360A	PGK30360S	PGK30360SA
	Prime Power Rating	45KVA/36KW
	Standby Power Rating	49.5KVA/39.6KW
	Size(mm)	1650*735*1135		2250*950*1250
	Weight(KG)	847		1113
	Internal protection	IP22
	Rate current(A)	65
	Specific Fuel Consumption(L/H)@100% Load	10.7
	Noise at 7 meters away(dB)	N/A		75db
Engine	Model	1706A-E93TAG2
	NO. of Cylinder	3
	Cylinder Type	VERTICAL INLINE
	RPM	1500
	Bore (mm)	105
	Stroke(mm)	127
	Speed Governor	electronic
	Start system(VDC)	24
	Lub Oil Specification	15W40
	Displacement(Ltrs)	3.3
	Lub Oil Sump Capacity(Ltrs)	8.3
	Coolant Capacity(Ltrs)	10.2
	Air inspiration	turbo
	Phase	3

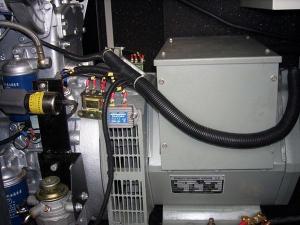

Alternator	Brand	KUSING
	Model	S314G280D6
	3 Phase Voltage(1 Phase) Volts	380-415(220-240)
	RPM/Frequency	1500rpm/50hz
	Power Factor(%)	0.8(lagging)
	Voltage Tolerance(+/- %)	1
	Insulation Class	H

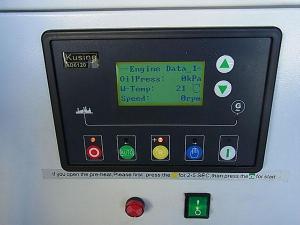

Control Panel	Brand	KUSING
	Model	AD6122
Fuel Tank	Capacity(Ltrs)	SUPPORT TO RUN 8-10 HOURS
