TECHANICAL DATA
Generator set	Type	Open	Open with ATS	Silent	Silent with ATS
	Genset Model	PK33200	PK33200A	PK33200S	PK33200SA
	Prime Power Rating	400KVA/320KW
	Standby Power Rating	440KVA/352KW
	Size(mm)	3100*1150*1990		4500*1400*2200
	Weight(KG)	2969		4121
	Internal protection	IP22
	Rate current(A)	577
	Specific Fuel Consumption(L/H)@100% Load	71
	Noise at 7 meters away(dB)	N/A		75db

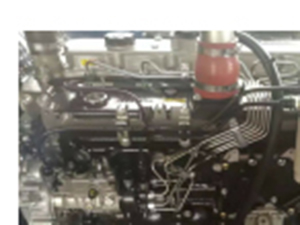

Engine	Model	Perkins 2206C -E13TAG3
	NO. of Cylinder	6
	Cylinder Type	L
	RPM	1500
	Bore (mm)	130
	Stroke(mm)	157
	Speed Governor	electronic
	Start system(VDC)	24
	Lub Oil Specification	15W40
	Displacement(Ltrs)	12.5
	Lub Oil Sump Capacity(Ltrs)	40
	Coolant Capacity(Ltrs)	51.4
	Air inspiration	turbo
	Phase	3
Alternator	Brand	KUSING
	Model	TCU318C
	3 Phase Voltage(1 Phase) Volts	380-415(220-240)
	RPM/Frequency	1500rpm/50hz
	Power Factor(%)	0.8(lagging)
	Voltage Tolerance(+/- %)	1
	Insulation Class	H
Control Panel	Brand	KUSING
	Model	AD6132
Fuel Tank	Capacity(Ltrs)	SUPPORT TO RUN 8 TO 10 HOURS
