Generator set	Type	Open	Open with ATS	Silent	Silent with ATS
	Genset Model	DK33200	DK33200A	DK33200S	DK33200SA
	Prime Power Rating	400KVA/320KW
	Standby Power Rating	440KVA/352KW
	Size(mm)	3100*1150*1990		4500*1500*2200
	Weight(KG)	3380		4200
	Internal protection	IP22
	Rate current(A)	577
	Specific Fuel Consumption(g/kW·h)@100% Load	≤195
	Noise at 7 meters away(dB)	N/A		75db

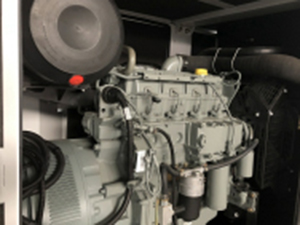

Engine	Model	Deutz BF6M1015CP-LA G
	NO. of Cylinder	6
	Cylinder Type	L
	RPM	1500
	Bore (mm)	132
	Stroke(mm)	145
	Speed Governor	electronic
	Start system(VDC)	24
	Lub Oil Specification	15W40
	Displacement(Ltrs)	7.5
	Air inspiration	turbo
	Phase	3
Alternator	Brand	KUSING
	Model	S314G320E8
	3 Phase Voltage(1 Phase) Volts	380-415(220-240)
	RPM/Frequency	1500rpm/50hz
	Power Factor(%)	0.8(lagging)
	Voltage Tolerance(+/- %)	1
	Insulation Class	H
Control Panel	Brand	KUSING
	Model	AD6132
Fuel Tank	Capacity(Ltrs)	SUPPORT TO RUN 8 TO 10 HOURS
