Generator set	Type	Open	Open with ATS	Silent	Silent with ATS
	Genset Model	DK31800	DK31800A	DK31800S	DK31800SA
	Prime Power Rating	225KVA/180KW
	Standby Power Rating	247.5KVA/198KW
	Size(mm)	2480*900*1630		3800*1300*1900
	Weight(KG)	1850		2480
	Internal protection	IP22
	Rate current(A)	325
	Specific Fuel Consumption(g/kW·h)@100% Load	≤193
	Noise at 7 meters away(dB)	N/A		75db
Engine	Model	Deutz BF6M1013FC G3
	NO. of Cylinder	6
	Cylinder Type	L
	RPM	1500
	Bore (mm)	108
	Stroke(mm)	130
	Speed Governor	electronic
	Start system(VDC)	24
	Lub Oil Specification	15W40
	Displacement(Ltrs)	7.146
	Air inspiration	turbo
	Phase	3
Alternator	Brand	KUSING
	Model	S274G180E
	3 Phase Voltage(1 Phase) Volts	380-415(220-240)
	RPM/Frequency	1500rpm/50hz
	Power Factor(%)	0.8(lagging)
	Voltage Tolerance(+/- %)	1
	Insulation Class	H

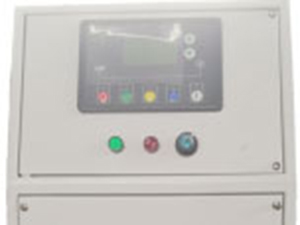

Control Panel	Brand	KUSING
	Model	AD6132
Fuel Tank	Capacity(Ltrs)	SUPPORT TO RUN 8 TO 10 HOURS
