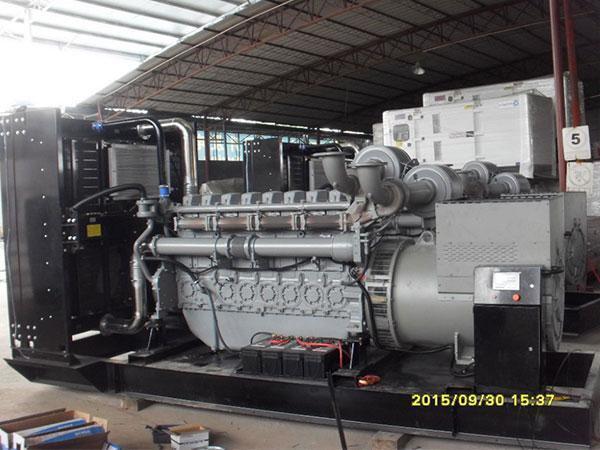

PK35000 Perkins Powered Diesel Generator

This product has been discontinued and removed from our shelves.

Technical Parameters
Model PK35000
Phase 3 Phase
Power Factor 0.8cosØ
Frequency 50HZ 60HZ
Speed RPM 1500 1800
Max. Power KVA 687.5 742.5
KW 550 594
Rated Power KVA 625 675
KW 500 540
Rated Voltage V 400 400
Rated Current A 902.14 974.31
Fuel Consumption G/KW.H ≤202
Generator Controller Auto Multi-function
Engine Model. 2806A-E18TAG2
Alternator Model. MP-500-4A/S
Clinder No. 6/L
Starting System Electric Start
Cooling Method Water-cooling
Protection Grade IP21-IP23
Insulation Class H

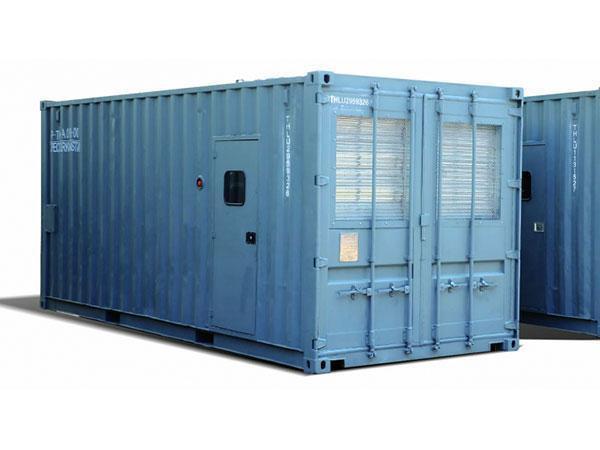

Size (MM) Silent Type 5200*1860*2550
Open Type 3650*1600*2050
Optional ATS (auto transfer switch)

Kusing is a reliable industrial diesel generator manufacturer, PK35000 Perkins engine powered 500KW 50HZ and 540KW 60HZ diesel generator supplier, there are a wide range of diesel generating sets with power ranging from 10KVA to 2000KVA, such as Cummins engine powered generator, Lovol engine powered generator, etc. We have years of experience in designing and manufacturing industrial generators, each genset is tested to ensure quality, Kusing company provides quality diesel gensets as well as diesel power solutions for customers.
